I Got a New Watt Meter!

Yay!

No, really…I have been without a watt meter for over a year.  This is a tragic thing for an engineer.  What happened is that I lent my trusty P3 Kill-A-Watt Meter to a co-worker, who then quit and moved.  He did kindly pay me for it on his last day, when he realized he’d never given it back, so there are no hard feelings…

Well, with the restart of this blog, it was obviously time to pickup a new watt meter.  I decided to buy the Belkin Conserve meter based on the fact that the display is separate from the wall outlet.  This makes it much easier to read…no more bending over to peer behind the desk.

https://www.amazon.com/Belkin-Conserve-Insight-Monitor-F7C005Q/dp/B003WV5DBU/ref=sr_1_4?ie=UTF8&qid=1490828032&sr=8-4&keywords=watt+meter

I also picked up a new P3 Kill-A-Watt meter, because I missed my old one so dearly.  Also, this is the watt meter that all other watt meters are judged by!  See my previous article here:

Fun with Watt Meters

Both of these power meters cost about $25.  The P3 is loaded with many more features, such as monitoring phantom power, real power, line voltage, etc, but for the purpose of this blog all I looked at is the basic power monitoring function.

Of course I then needed to test these two meters against each other.  Since the P3 is what I had been using, I wanted to make sure the Belkin reports similar wattage results for a given load. As with any power electronics, it is important to test the circuitry and different load levels to make sure results are consistent with draw.  So, I used three household items to benchmark these two watt meters against each other.  The items I selected are constant-load items, which means that the power usage doesn’t jump around much during the test.  This makes things comparable.  Using a computer here would have been difficult, because computer power consumption is all over the place depending on what the darn thing is thinking about in the background.

Test 1: Yamaha Piano

The trusty old Yamaha piano was used to test how these watt meters report power for a low-load condition.  I set the piano playing one of the generic, annoying songs it came pre-programmed with (all of these songs are now annoying since our 2-year old plays them constantly on repeat).  Anyway, here the new Belkin meter showed a slightly higher power consumption than the P3 (8.8 vs 8.2 watts).  For these low power levels, the discrepancy was about 7%, which isn’t a great number.  This would be a bit disconcerting if we were intending to measure the power consumption of low-draw devices.  Thankfully, computers typically draw 100 watts or more.

Test 2: Humidifier



Our bedroom humidifier was used as a representative medium-load device.  It draws nominally 40 watts, and some ultra-efficient desktops and many small laptops will have a power consumption in this range.  Here, the Belkin meter reported a slightly lower power consumption than the P3 (33.7 vs 35.2 watts).  The delta between meters in this case is about 4 percent, which is better than the low-load test but still annoying.  Unfortunately, I didn’t have any convienant constant-load items in the 200-300 watt range, so the next test really ramps up the power.

Test 3: Space Heater

The space heater was used to represent a high-load. With a power draw near 900 watts, this would represent a monster desktop with multiple graphics cards. The Belkin reported two less watts consumed than the P3 (874 vs 876 watts).  Here, the percent difference is only 0.2%.  This is a good number.

Conclusion

For the expected power consumption of desktop computers in the 100-300 watt range, the Belkin and P3 meter will probably be within 2% of each other.  The more power consumed, the less the % difference between these two meters.  So, I think power readings taken with either meter should be comparable enough to each other.  Still, I will likely make all computer measurements with the Belkin, for the aforementioned reasons of ease of viewing.  With this meter properly positioned, you can geek out while gaming, folding, or playing the piano.  Not bad for 25 bucks, right?

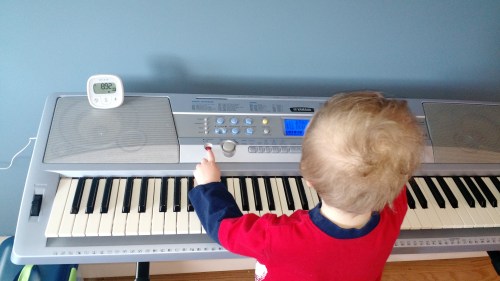

IMG_20170317_080456010

Advertisements

Fun with Watt Meters

So I lied…no power supply article tonight.  We are going to talk about watt meters instead, because without one you have no idea how much electricity your Folding rig is slurping from the wall socket.  This is obviously useful for other things as well…if you are a nerdy engineer like me, you can entertain yourself for hours by testing the power draw of everything in your house.  Did you know it costs me five cents of electricity to brew a pot of coffee in the morning?!?

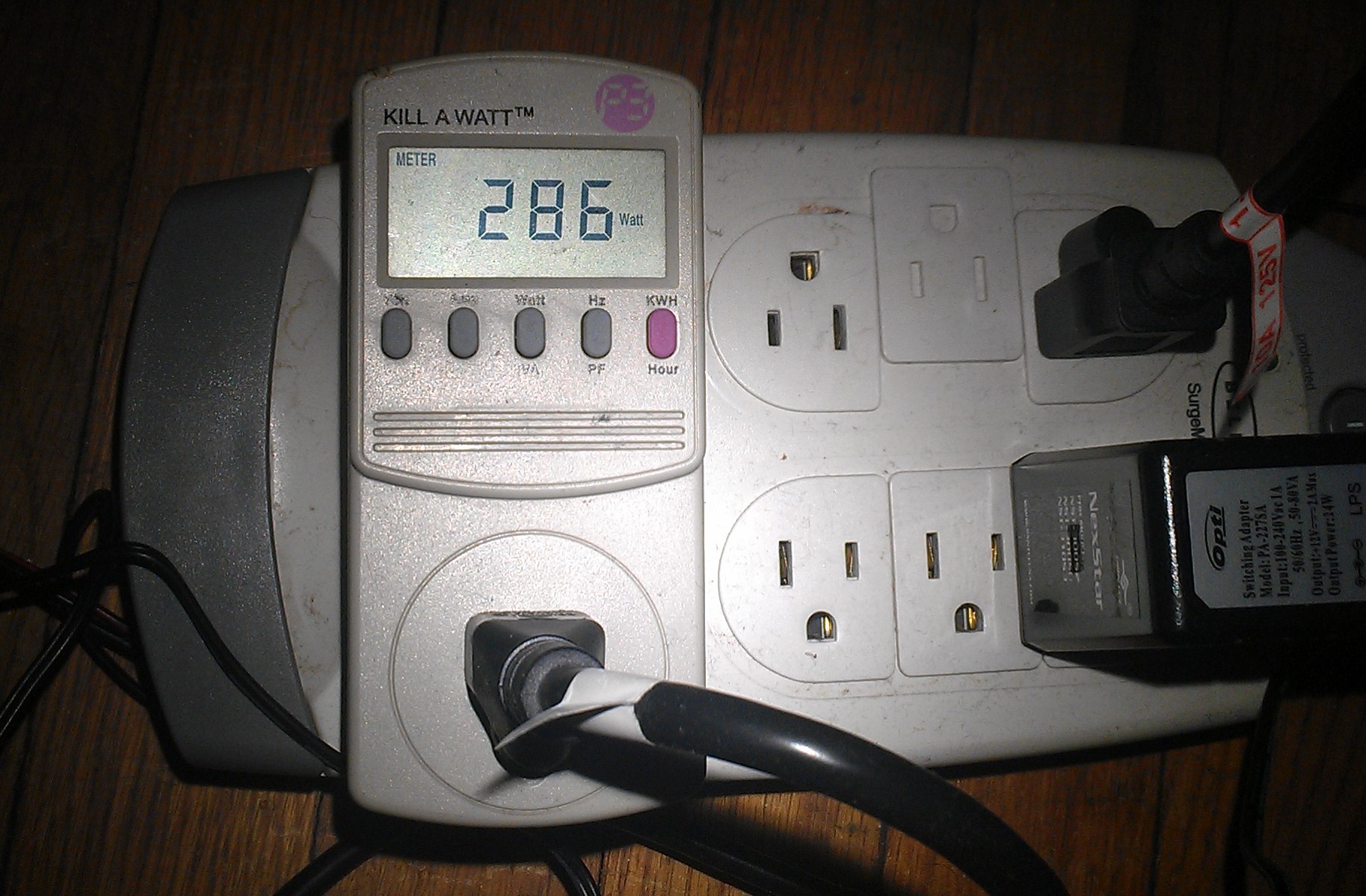

My Dirty Old P3 Kill A Watt Meter

My Dirty Old P3 Kill A Watt Meter

Anyway, the reviews on this blog will make use of the P3 Kill-a-Watt meter (above), and I suggest you pick one up as well.  They are only 20 bucks on Newegg, and that’s a steal for something that can tell you the supplied volts, power factor, power, current draw, and cumulative Kilowatt-hours consumed from attached devices.  It also is a fun way to nerd out in front of friends and family.  Seriously, you can test everything (well, not things like microwaves.  Those cause the little P3 to scream in agony due to exceeding its rated amperage handling capacity).  Finding hidden power draws and disproving manufacturer efficiency claims has never been so fun!  This will also help you to save money by realizing the value of turning certain devices off during the day, thus helping to offset your F@H addiction.

Anyway I am writing this on my phone (currently drawing 8 watts of power from the wall charger in case you care), so I’m not going to bother pecking in every last virtue of this nifty device lest my thumbs fall off.  The reviews on Newegg speak for themselves…P3 Kill-a-Watt meter for the win!  Get one!
