Folding@home is Stanford University’s charitable distributed computing project. It’s charitable because you can donate electricity, as converted into work through your home computer, to fight cancer, Alzheimer, and a host of other diseases. It’s distributed, because anyone can run it with almost any desktop PC hardware. But, not all hardware configurations are created equally. If you’ve been following along, you know the point of this blog is to do the most work for as little power consumption as possible. After all, electricity isn’t free, and killing the planet to cure cancer isn’t a very good trade-off.

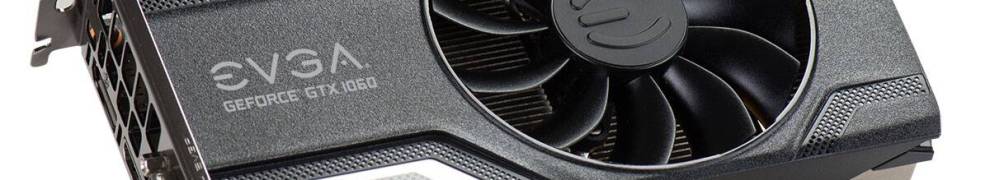

Today we’re testing out Folding@home on EVGA’s single-fan version of the NVIDIA GTX 1060 graphics card. This is an impressive little card in that it offers a lot of gaming performance in a small package. This is a very popular graphics card for gamers who don’t want to spend $400+ on GTX 1070s and 1080s. But, how well does it fold?
Manufacturer: EVGA Model #: 06G-P4-6163 Model Name: EVGA GeForce GTX 1060 SC GAMING (Single Fan) Max TDP: 120 Watts Power: 1 x PCI Express 6-pin GPU: 1280 CUDA Cores @ 1607 MHz (Boost Clock of 1835 MHz) Memory: 6 GB GDDR5 Bus: PCI-Express X16 3.0 MSRP: $269
Folding@Home Test Setup
For this test I used my normal desktop computer as the benchmark machine. Testing was done using Stanford’s V7 client on Windows 7 64-bit running FAH Core 21 work units. The video driver version used was 381.65. All power consumption measurements were taken at the wall and are thus full system power consumption numbers.
If you’re interested in reading about the hardware configuration of my test rig, it is summarized in this post:
Information on my watt meter readings can be found here:
FOLDING@HOME TEST RESULTS – 305K PPD AND 1650 PPD/WATT
The Nvidia GTX 1060 delivers the best Folding@Home performance and efficiency of all the hardware I’ve tested so far. As seen in the screen shot below, the native F@H client has shown up to 330K PPD. I ran the card for over a week and averaged the results as reported to Stanford to come up with the nominal 305K Points Per Day number. I’m going to use 305 K PPD in the charts in order to be conservative. The power draw at the wall was 185 watts, which is very reasonable, especially considering this graphics card is in an 8-core gaming rig with 16 GB of ram. This results in a F@H efficiency of about 1650 PPD/Watt, which is very good.
Screen Shot from F@H V7 Client showing Estimated Points per Day:
Here are the averaged results based on actual returned work units
(Graph courtesy of http://folding.extremeoverclocking.com/)
Note that in this plot, the reported results previous to the circled region are also from the 1060, but I didn’t have it running all the time. The 305K PPD average is generated only from the work units returned within the time frame of the red circle (7/12 thru 7/21)
Production and Efficiency Plots
For about $250 bucks (or $180 used if you get lucky on eBay), you can do some serious disease research by running Stanford University’s Folding@Home distributed computing project on the Nvidia GTX 1060 graphics card. This card is a good middle ground in terms of price (it is the entry-level in NVidia’s current generation of GTX series of gaming cards). Stepping up to a 1070 or 1080 will likely continue the trend of increased energy efficiency and performance, but these cards cost between $400 and $800. The GTX 1060 reviewed here was still very impressive, and I’ll also point out that it runs my old video games at absolute max settings (Skyrim, Need for Speed Rivals). Being a relatively small video card, it easily fits in a mid-tower ATX computer case, and only requires one supplemental PCI-Express power connector. Doing over 300K PPD on only 185 watts, this Folding@home setup is both efficient and fast. For 2017, the NVidia 1060 is an excellent bang-for-the-buck Folding@home Graphics Card.
Request: Anyone want to loan me a 1070 or 1080 to test? I’ll return it fully functional (I promise!)
Depending on the project my 3gb Asus Phoenix card will give 285 stock and 295 with a bit of an overclock. I figured it would be around 275 but it’s never dropped under 280. Using MSI afterburner to track the card wattage on it is steady 80 watt average with a peak of 87 in stock. With overclock average wattage is 87 with a peak of 92. So it seems to be more efficient with the stock settings. Really awesome! So overall I am happy with the 3gb version and I am glad I got this card. Thanks for these results it really helped me decide on the card to get.
GTX 1070 delivers a long-term average of about 600k for 150 watts.
GTX 1080 and GTX 1080ti do even better.
I’ve never folded on the 1070 ti, but it appears to be very close to 1080 figures.
Then you factor in TOTAL SYSTEM usage and the comparison gets even worse.
I would not even CONSIDER folding on less than a 1070, unless I already had the hardware.
It looks like the efficiency scales identically between the 1060 and 1070 according to https://docs.google.com/spreadsheets/d/1v5gXral3BcFOoXs5n1M6l_Uo3pZpQYogn6gVlxRPnz0/edit#gid=0
My mistake, 1080 is superior indeed!
Pingback: Folding on the NVidia GTX 1070 | Green Folding@Home
Pingback: Folding@Home Efficiency vs. GPU Power Limit | Green Folding@Home
I am getting a used GTX 1060 tomorrow just for FAH based on your results and the info documented at https://docs.google.com/spreadsheets/d/1v5gXral3BcFOoXs5n1M6l_Uo3pZpQYogn6gVlxRPnz0/edit#gid=0
I am sticking it into my old gaming machine and it will run every night (so that our constrained electricity grid in south africa is not disturbed).
I am getting a GTX 1060 tomorrow just for FAH on my old gaming rig. Thanks for the info on this blog and whoever all contributed to this sheet: https://docs.google.com/spreadsheets/d/1v5gXral3BcFOoXs5n1M6l_Uo3pZpQYogn6gVlxRPnz0/edit#gid=0
I will run that GPU until its dead or a more efficient card becomes affordable.
I am only running it at night as not to disturb our very constrained electricity grid here in south africa
