Ultra-Low Power Consumption Computer Tested – 25 Watt AMD Athlon 5350 Quad-Core APU!

When it comes to the web server and file hosting world, where computers run 24/7, power consumption is often the leading concern when selecting hardware. The same is often true for low-load applications, such as HTPCs, where power and heat are at odds with a silent, inexpensive machine. For these machines, which might see an occasional spike in load but typically sit in a near-idle state, a low idle power consumption is key.

The place where lower power components are not as valuable is the high performance computing world. Here, the goal shouldn’t be isn’t the absolute lowest power consumed, but the lowest power required to do a unit of work.

Flipping this around, the goal is to maximize the amount of computational work done per unit of power. This is computational efficiency.

Computational Efficiency on Super Low-Power Computers

Most of the reviews on this blog have been on rather expensive, high-powered hardware. By this I mean big honking graphics cards running on 8-core machines with 16 GB of ram. I’ve even tested dual-CPU servers with 64 GB of ram, like the dual AMD Opteron workstation below:

Dual Opteron RIG

Dual Opteron 4184 12-Core Server – 64 GB Ram

In this article, I’m going in the other direction. I’ll be testing a little teeny-weenie computer, to see just how well an ultra-low power consumption computer does in terms of computational efficiency.

The Machine

Four years ago, AMD did something that some people thought was silly. They released a socketed version of one of their ultra low-power processors. This meant that instead of being constrained with a tiny integrated device like chromebook, people could actually build an upgradable desktop with a drop-in CPU. Well, APU, actually, since AMD included the graphics on the chip.

That processor was the Kabini architecture APU. Built on a 28 nm process, it went along with a new socket (AM1).  There is a really good overview of this here:

https://www.anandtech.com/show/7933/the-desktop-kabini-review-part-1-athlon-5350-am1

I won’t go into too much detail, other than to point out that the flagship chip, the Athlon 5370, was a quad-core, 2.2 Ghz APU with 128 Radeon graphics cores, and an amazing Thermal Design Power of just 25 watts! In a time when the most energy efficient dual and quad-core processors were hovering around 45-65 Watt TDP, this chip was surprising. And, it eliminated the need for a discrete graphics card. And all for $60 bucks!

So, I got my hands on one (not the 5370, but the slightly slower 2.05 Ghz 5350). The prices are a bit inflated now (some nutters want up to 300 dollars for these little guys on eBay, although if you are lucky you can get a deal). For example, this isn’t the one I bought, but it’s a pretty nice combo (board, ram, and CPU) for $72 dollars.

AM1 Build Deal

AMD 25 Watt Quad Core Deal!

Since the goal was to make a machine with the absolute lowest system power consumption, I got a Gigabyte GA-AM1M-S2H microATX board and two sticks of DDR3L (1.35 volt) energy efficient memory. The hard drive is an old, slow, single-platter (I think) Hitachi 80 GB unit, which seems to offer passable performance without the same power consumption as larger multi-platter drives. I used a Seasonic Focus 80+ Platinum 550 watt power supply, which is one of the most energy efficient PSUs available (I went with this vs. a Pico PSU because I wanted the ability to add a big graphics card later). I put 4 80mm case fans on a controller so I can take them right out of the equation.

Here’s pictures of the build. All the stickers make it faster…and external case fans are the bomb (put them on there for my kids to play with).

Defiant_Build

Low Power Consumption Build. Codename: Defiant

After a bit of fussing around, I was able to get the machine up and running with Linux Mint 19.1. Using my P3 Kill A Watt Meter, I measured a system idle power consumption of about 23 watts with the case fans off and 28 watts with the case fans on. That’s less than half of an incandescent light bulb!

Folding@Home Performance

I downloaded the latest V7 Folding@Home client for Linux and enabled 4-core CPU folding (I also set the computer up with a passkey to earn the quick return bonus points). I let it run for a month to make sure everything was stable. Here are the results from the latest week of CPU folding:

AMD APU PPD

AMD Athlon 5350 Folding@Home Production

As you can see, the machine is not fast enough to always return a work unit every day. However, using a 10-day average, the Points Per Day production is 1991.4 PPD. This is in the ballpark of what was reported by the client.

Power consumption when folding was 35 watts (30 with case fans off…with a system this small, the fan power consumption is a significant percentage). I thought it would have been a bit higher, but then again, power supplies are not very efficient at super low loads, and this machine’s mid 20-watt idle consumption is way, way less than what the Seasonic 550-watt PSU is designed for. As the power consumption comes up out of the ultra-low region, the PSU efficiency increases. So, throwing a full 25 Watt TDP of CPU folding at the equation resulted in only a net 10 watt increase in power consumption at the wall.

In short, running full-tilt, this little computer only uses 35 watts of power! That’s incredible! In terms of efficiency, the PPD/Watt is 1991.4/35 = 56.9

The following plots show how this stacks up to other hardware configurations. On the wattage plot, I noted which test machine was used.



AMD Athlon 5350 (25 Watt TDP Quad Core APU) Folding@Home Results

AMD Athlon 5350 PPD Comparison

The Athlon 5350 is not very fast…all the other processors do more science per day, and the graphics cards do a lot more!

AMD APU Efficiency Comparison

The Athlon 5350 is also not very efficient. Even though its power consumption is low, it does not produce much science for the power that it draws. It is, interestingly, more efficient than an old Intel Q6600 quad core.

AMD APU Watt Comparison

The Athlon 5350 is an extremely low-power CPU. The desktop build here draws less power than anything I’ve tested, including my laptop!

Conclusion

Super low-power consumption computers, such as one based on the 25-watt quad-core Athlon 5350, are good at (you guessed it) drawing almost no power from the wall. I was able to build a desktop machine that, when running full tilt, uses the same amount of power as three LED light bulbs (or half of one standard incandescent light bulb). It even uses less power than my laptop (and my laptop is tiny!). That’s pretty cool.

Sadly, that’s where the coolness end. If your goal is to do tons of computation, low-power PC parts won’t help (dur!). In the case of supporting disease research for Stanford University’s Folding@Home distributed computing project, the Athlon 5350 test system got spanked by everything else I’ve tested, including my 10-year-old Inspiron 1545 laptop. Worse, despite its ultra low power consumption, the sheer lack of performance kills the efficiency of this machine.

As a side note, I have been overwhelmingly pleased with the computer as a HTPC. It is quiet, uses almost no electricity, and is actually pretty quick at multi-tasking in Linux Mint’s desktop environment, thanks to the 4 CPU cores. This build also offers me the chance to test something else…namely pushing the efficiency of graphics card folding. By reducing the background system power consumption to an incredibly low level, the whole-system efficiency of a folding computer can be increased. All I have to do next is give this little computer some teeth…in the form of a big graphics card! So, it sounds like I’ll have to do another article….stay tuned!

F@H Efficiency: Overclock or Undervolt?

Efficiency Tweaking

After reading my last post about the AMD Phenom II X6 1100T’s performance and efficiency, you might be wondering if anything can be done to further improve this system’s energy efficiency.  The answer is yes, of course!  The 1100T is the top-end Phenom II processor, and is unlocked to allow tweaking to your heart’s content.  Normal people push these processors higher in frequency, which causes them to need more voltage and use more power.  While that is a valid tactic for gaining more raw points per day, I wondered if the extra points would be offset by a non-proportional increase in power consumption.  How is efficiency related to clock speed and voltage?  My aim here is to show you how you can improve your PPD/Watt by adjusting these settings.  By increasing the efficiency of your processor, you can reduce the guilt you feel about killing the planet with your cancer-fighting computer.  Note that the following method can be applied to any CPU/motherboard combo that allows you to adjust clock frequencies and voltages in the BIOS.  If you built your folding rig from scratch, you are in luck, because most custom PCs allow this sort of BIOS fun.  If you are using your dad’s stock Dell, you’re probably out of luck.

AMD Phenom II X6: Efficiency Improved through Undervolting

The baseline stats for the X6 Phenom 1100T are 3.3 GHz core speed with 2000 MHz HyperTransport and Northbridge clocks. This is achieved with the CPU operating at 1.375v, with a rated TDP (max power consumption) of 125 watts. Running the V7 Client in SMP-6 with my pass key, I saw roughly 12K ppd on A3 work units.  This is what was documented in my blog post from last time.

Now for the fun part.  Since this is a Black Edition processor from AMD, the voltages, base frequencies, and multipliers are all adjustable in the system BIOS (assuming your motherboard isn’t a piece of junk).  So, off I went to tweak the numbers.  I let the system “soak” at each setting in order to establish a consistent PPD baseline.  I got my PPD numbers by verifying what the client was reporting with the online statistics reporting.  Wattage numbers come from my trusty P3 Kill-A-Watt meter.

First, I tried overclocking the processor.  I upped the voltage as necessary to keep it stable (stable = folding overnight with no errors in F@H or my standard benchmark tests).  It was soon clear that from an efficiency standpoint, overclocking wasn’t really the way to go.  So, then I went the other way, and took a bit of clock speed and voltage out.

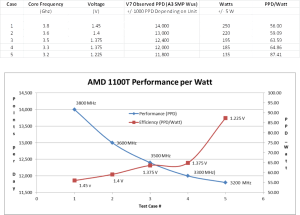

F@H Efficiency Curve: AMD Phenom II X6 1100T

F@H Efficiency Curve: AMD Phenom II X6 1100T

These results are very interesting.  Overclocking does indeed produce more points per day, but to go to higher frequencies required so much voltage that the power consumption went up even more, resulting in reduced efficiency.  However, a slight sacrifice of raw PPD performance allowed the 1100T to be stable at 1.225 volts, which caused a marked improvement in efficiency.  With a little more experimenting on the underclocking / undervolting side of things, I bet I could have got this CPU to almost 100 PPD / Watt!

Conclusion

PPD/Watt efficiency went up by about 30% for the Phenom II X6 1100T, just by tweaking some settings in the BIOS.  Optimizing core speed and voltage for efficiency should work for any CPU (or even graphics card, if your card has adjustable voltage).  If you care about the planet, try undervolting / underclocking your hardware slightly.  It will run cooler, quieter, and will likely last longer, in addition to doing more science for a given amount of electricity.
