AMD Ryzen 9 3950x Part 4: Full Throttle Folding with CPB Overclocking and SMT

This is part four of my Folding@Home review for AMD’s top-tier desktop processor, the Ryzen 9 3950x 16-core CPU. Up until recently, this was AMD’s absolute beast-mode gaming and content creation desktop processor. If you happen to have one, or are looking for a good CPU to fight COVID and Cancer with, you’ve come to the right place.

Folding@Home is a distributed computing project where users can donate computational runtime on their home computers to fight diseases like Cancer, Alzheimer’s, Mad-Cow, and many others. For better or for worse, COVID-19 caused an explosion of F@H popularity, because the project was retooled to focus on understanding the coronavirus molecule to aid researches develop ways to fight it. This increase in users caused Folding@Home to become (once again) the most powerful supercomputer in the world. Of course this comes with a cost: namely, in the form of electricity. Most of my articles to date have focused on GPU folding. However, the point of this series of articles is to investigate how someone running CPU folding can optimize their settings to do the most work for the least amount of power, thus reducing their power bill and reducing the environmental impact of all this computing.

In the last part of this review, I investigated the differences seen between running Folding@Home with SMT (also known as Hyperthreading) on and off. The conclusion from that review was that performance does scale with virtual cores, and that the best science-fighting and energy efficiency is seen with 30 or 32 threads enabled on the CPU folding slot.

The previous testing was all performed with Core Performance Boost off. CPB is the AMD equivalent of Intel’s Turbo Boost, which is basically automatic, dynamic overclocking of the processor (both CPU frequency and voltage) based on the load on the chip. Keeping CPB turned off in previous testing resulted in all tests being run with the CPU frequency at the base 3.5 GHz.

In this final article, I enabled CPB to allow the Ryzen 9 3950x to scale its frequency and voltage based on the load and the available thermal and power headroom. Note that for this test, I used the default AMD settings in the BIOS of my Asus Prime X570-P motherboard, which is to say I did not enable Precision Boost Overdrive or any other setting to increase the automatic overclocking beyond the default power and thermal limits.

Test Setup

As with the other parts of this review, I used my new Folding@Home benchmark machine which was previously described in this post. The only tweaks to the computer since that post was written were the swap outs of a few 120mm fans for different models to improve cooling and noise. I also eliminated the 80 mm side intake fan, since all it did was disrupt the front-to-back airflow around the CPU and didn’t make any noticeable difference in temperatures. All of these cooling changes made less than a 2 watt difference in the machine’s idle performance (almost unmeasurable), so I’m not going to worry about correcting the comparison plots.

Because it’s been a while since I wrote about this, I figured I’d recap a few things from the previous posts. The current configuration of the machine is:

  • Case: Raidmax Sagitta
  • Power Supply: Seasonic Prime 750 Watt Titanium
  • Intake Cooling: 2 x 120mm fan (front)
  • Exhaust Cooling: 1 x 120 mm (rear) + PSU exhaust (top)
  • CPU Cooler: Noctua NH-D15 SE AM4
  • CPU: AMD Ryzen 9 3950x
  • Motherboard: Asus Prime X570-P
  • Memory: 32 GB Corsair Vengeance LPX DDR4 3600 MHz
  • GPU: Zotac Nvidia GeForce 1650 installed for CPU testing
  • OS Drive: Samsung 970 Evo Plus 512 GB NVME SSD
  • Storage Drive #1: Samsung 860 EVO 2TB SSD
  • Storage Drive #2: Western Digital Blue 128 GB NVME SSD
  • Optical Drive: Samsung SH-B123L Blu-Ray Drive
  • Operating System: Windows 10 Home

The Folding@Home software client used was version 7.6.13.

Test Methodology

The point of this testing is to identify the best settings for performance and energy efficiency when running Folding@Home on the Ryzen 3950x 16-core processor. To do this, I set the # of threads to a specific value between 1 and 32 and ran five work units. For each work unit, I recorded the instantaneous points per day (PPD) as reported in the client, as well as power consumption of the machine as reported on my P3 Kill A Watt meter. I repeated this 32 times, for a total of 160 tests. By running 5 tests at each nCPU setting, some of the work unit variability can be averaged out.

The Number of CPU threads can be set by editing the slot configuration

Folding@Home Performance: Ryzen 9 3950X

Folding@Home performance is measured in Points Per Day (PPD). This is the numbe that most people running the project are most interested in, as generating lots of PPD means your machine is doing a lot of good science to aid the researchers in their fight against diseases. The following plot shows the trend of Points Per Day vs. # of CPU threads engaged. The average work unit variation came out to being around 12%…this results in a pretty significant spread in performance between different work units at higher thread counts. As in the previous testing, I plotted a pair of boundary lines to capture the 95% confidence interval, meaning that assuming a Gaussian distribution of data points, 95% of the work units will perform between in this boundary region.

AMD Ryzen 9 3950X Folding@Home Performance: Core Performance Boost and Simultaneous Multi-Threading Enabled

As can be seen in the above plot, in general, the Folding@Home client’s Points Per Day production increases with increasing core count. As with the previous results, the initial performance improvement is fairly linear, but once the physical number of CPU cores is exceeded (16 in this case), the performance improvement drops off, only ramping up again when the core settings get into the mid 20’s. This is really strange behavior. I suspect it has something to do with how Windows 10 schedules logical process threads onto physical CPU cores, but more investigation is needed.

One thing that is different abut this test is that the Folding@Home consortium started releasing new work units based on the A8 core. These work units support the AVX2_256 instruction set, which allows some mathematical operations to be performed more efficiently on processors that support AVX2 (specifically, an add operation and a multiply operation can be performed at the same time). As you can see, the Core A8 work units, denoted by purple dots, fall far above the average performance and the 95% confidence interval lines. Although it is awesome that the Folding@Home developers are constantly improving the software to take advantages of improved hardware and computer programming, this influx of fancy work units really slowed my testing down! There were entire days when all I would get were core A8 units, when I really need core A7 units to compare to my previous testing. Sigh…such is the price of progress. Anyway, these work units were excluded from the 5-work unit averages composing each data point, since I want to be able to compare the average performance line to previous testing, which did not include these new work units.

As noted in my previous posts, some settings of the # of CPU threads result in the client defaulting to a lower thread count to prevent numerical problems that can arise for certain mathematical operations. For reference, the equivalent thread settings are shown in the table below:

Equivalent Thread Settings:

The Folding@Home Client Adjusts the Thread Count to Avoid Numerical Problems Arising with Prime Numbers and Multiples Thereof…

Folding@Home Power Consumption

Here is a much simpler plot. This is simply the power consumption as reported by my P3 Kill A Watt meter at the wall. This is total system power consumption. As expected, it increases with increasing core count. Since the instantaneous power the computer is using wobbles around a bit as the machine is working, I consider this to be an “eyeball averaged” plot, with an accuracy of about 5 watts.

AMD Ryzen 9 3950X Folding@Home Power Consumption: Core Performance Boost and Simultaneous Multi-Threading Enabled

As can be seen in the above plot, something interesting starts happening at higher thread counts: namely, the power consumption plateaus. This wasn’t seen in previous testing with Core Performance Boost set to off. Essentially, with CPB on, the machine is auto-overclocking itself within the factory defined thermal and power consumption limits. Eventually, with enough cores being engaged, a limit is reached.

Investigating what is happening with AMD’s Ryzen Master software is pretty enlightening. For example, consider the following three screen shots, taken during testing with 2, 6, and 16 threads engaged:

2 Thread Solve:

AMD Ryzen Master: Folding@Home CPU Folding, 2 Threads Engaged

6 Thread Solve

AMD Ryzen Master: Folding@Home CPU Folding, 6 Threads Engaged

16 Thread Solve

AMD Ryzen Master: Folding@Home CPU Folding, 16 Threads Engaged

First off, please notice that the temperate limit (first little dial indicator) is never hit during any test condition, thanks to the crazy cooling of the Noctua NH-D15 SE. Thus, we don’t have to worry about an insufficient thermal solution marring the test results.

Next, have a look at the second and third dial indicators. For the 2-core solve, the peak CPU speed is a blistering 4277 MHz! This is a factory overclock of 22% over the Ryzen 9 3950x’s base clock of 3500 MHz. This is Core Performance Boost in action! At this setting, with only 2 CPU cores engaged, the total package power (PPT) is showing 58% use, which means that there is plenty of electrical headroom to add more CPU cores. For the 6-core solve, the peak CPU speed has come down a bit to 4210 MHz, and the PPT has risen to 79% of the rated 142 watt maximum. What’s happening is the extra CPU cores are using more power, and the CPU is throttling those cores back a bit to keep everything stable. Still, there is plenty of headroom.

That story changes when you look at the plot for the 16-thread solve. Here, the peak clock rate has decreased to 4103 MHz and the total package power has hit the limit at 142 watts (a good deal beyond the 105 watt TDP of the 3950X!). This means that the Core Performance Boost setting has pushed the clocks and voltage as high as can be allowed under the default auto-overclocking limits of CPB. This power limit on the CPU is the reason the system’s wall power consumption plateaus at 208 watts.

If you’re wondering what makes up the difference between the 208 watts reported by my watt meter and the 142 watts reported by Ryzen Master, the answer is the rest of the system besides the CPU socket. In other words, the motherboard, memory, video card, fans, hard drives, optical drive, and the power supply’s efficiency.

Just for fun, here is the screen shot of Ryzen Master for the full 32-core solve!

AMD Ryzen Master: Folding@Home CPU Folding, 32 Threads Engaged

Here, we have an all-core peak frequency of 3855 MHz. Interestingly, the CPU temp and PPT have decreased slightly from the 16-core solve, even though the processor is theoretically working harder. What’s happening here is yet another limit has been reached. Look at the 6th dial indicator labeled ‘TDC’. This is a measure of the instantaneous peak current, in Amperes, being applied to the CPU. Apparently with 32 threads, this peak current limit of 95 amps is getting hit, so clock speed and voltage is reduced, resulting in a lower average socket power (PPT) than the 16-core solve.

Folding@Home Efficiency

Now for my favorite plot…Efficiency! Here, I am taking the average performance in PPD (excluding the newfangled A8 work units for now) and dividing it by the system’s wall power consumption. This provides a measure of how much work per unit of power (PPD/Watt) the computer is doing.

AMD Ryzen 9 3950X Folding@Home Efficiency: Core Performance Boost and Simultaneous Multi-Threading Enabled

This plot looks fairly similar to the performance plot. In general, throwing more CPU threads at the problem lets the computer do more work in a unit of time. Although higher thread counts consume more power than lower thread counts, the additional power use is offset by the massive amount of extra computational work being done. In short, effiency improves as thread count improves.

There is a noticeable dent in the curve however, from 15 to 23 threads. This is this interesting region where things get weird. As I mentioned before, I think what might be happening is some oddity in how Windows 10 schedules jobs once the physical number of CPU threads has been exceeded. I’m not 100% sure, but what I think Windows is doing is potentially juggling the threads around to keep a few physical CPU cores free (basically, it’s putting two threads on one CPU core, i.e. utilizing SMT, even when it doesn’t have to, in order to keep some CPU cores available for other tasks, such as using Windows). It isn’t until we get over 24 threads that Windows decides we are serious about running all these jobs, and reluctantly schedules the jobs out for pure performance.

I do have some evidence to back up this theory. Investigating what is going on with Ryzen Master with Folding@Home set to 20 threads is pretty telling.

AMD Ryzen Master: Folding@Home CPU Folding, 32 Threads Engaged

Since 20 threads exceeds the 16-core capacity of the processor, one would think all 16 cores would be spun up to max in order to get through this work as fast as possible. However, that is not the case. Only 12 cores are clocked up. Now, if you consider SMT, these 12 cores can handle 24 threads of computation. So, virtual cores are being used as well as physical cores to handle this 20-thread job. This obviously isn’t ideal from a performance or an efficiency standpoint, but it makes sense considering what Windows 10 is: a user’s operating system, not a high performance computing operating system. By keeping some physical CPU cores free when it can, Microsoft is hoping to ensure users a smooth computing experience.

Comparison to Previous Results

The above plots are fun and all, but the real juice is the comparison to the previous results. As a reminder, these were covered in detail in these posts:

SMT On, CPB Off

SMT Off, CPB Off

Performance Comparison

In the previous parts of this article, the difference between SMT (aka Hyperthreading) being on or off was shown to be negligible on the Ryzen 9 3950x in the physical core region (thread count = 16 or less). The major advantage of SMT was it allowed more solver threads to be piled on, which eventually results in increased performance and efficiency for thread counts above 25. In the plot below, the third curve basically shows what the effect of overclocking is. In this case, Core Performance Boost, AMD’s auto-overclocking routine, provides a fairly uniform 10-20 percent improvement. This diminishes for high core count settings though, becoming a nominal 5% improvement above 28 cores. It should be noted that the effects of work unit to work unit variation are still apparent, even with five averages per test case, so don’t try to draw any specific conclusions at any one thread count. Rather, just consider the overall trend.

AMD Ryzen 9 3950X Folding@Home Performance Comparison: Various Settings

Power Comparison

The power consumption plot shows a MASSIVE difference between wall power being used for the CPB testing vs the other two tests. This shouldn’t come as a surprise. Overclocking a processor’s frequency requires more voltage. Within a given transistor cycle, the Average Voltage * Average Current = Average Power, so for a constant current being supplied to the CPU socket, an increase in voltage increases the power being consumed. This is compounded by the transistor switching frequency going up as well (due to the increased frequency), which also results in a higher average power consumption due to there being more transistor switching activities occurring in a given unit of time.

In short, we are looking at a very noticable increase in your electrical bill to run Folding@Home on an overclocked machine.

AMD Ryzen 9 3950X Folding@Home Power Comparison: Various Settings

Efficiency Comparison

Efficiency is the whole point of this article and this blog, so behold! I’ve shown in previous articles both on CPUs and GPUs that overclocking typically hurts efficiency (and conversely, that underclocking and undervolting improves efficiency). The story doesn’t change with factory automatic overclocking routines like CPB. In the below, it is clear that and here we have a very strong case for disabling Core Performance Boost, since it is up to 25% less efficient when enabled.

AMD Ryzen 9 3950X Folding@Home Efficiency Comparison: Various Settings

Conclusion

The Ryzen 9 3950x is a very good processor for fighting disease with Folding@Home. The high core count produces exceptional efficiency numbers for a CPU, with a setting of 30 threads being ideal. Leaving 2 threads free for the rest of Windows 10 doesn’t seem to hurt performance or efficiency too much. Given the work unit variation, I’d say that 30 and 32 threads produce the same result on this processor.

As far as optimum settings, to get the most bang for electrical buck (i.e. efficiency), running that 30-thread CPU slot requires SMT to be enabled. Disabling CPB, which is on by default, results in a massive efficiency improvement by cutting over 50 watts off the power consumption. For a dedicated folding computer running 24/7, shaving that 50 watts off the electric bill would save 438 kWh/year of energy. In my state, that would save me $83 annually, and it would also save about 112 lbs of CO2 from being released into the atmosphere. Imagine the environmental impact if the 100,000+ computers running Folding@Home could each reduce their power consumption by 50 watts by just changing a setting!

Future Work

If there is one thing to be said about overclocking a Ryzen 3xxx-series processor, it’s that the possibilities are endless. A downside to disabling CPB is that if you aren’t folding all the time, your processor will be locked at its base clock rate, and thus your single-threaded performance will suffer. This is where things like PBO come in. PBO = Precision Boost Overdrive. This is yet another layer on top of CPB to fine-tune the overclocking while allowing the system to run in automatic mode (thus adapting to the loads that the computer sees). Typically, people use PBO to let the system sustain higher clock rates than standard CPB would allow. However, PBO also allows a user to enter in power, thermal, and voltage targets. Theoretically, it should be possible to set up the system to allow frequency scaling for low CPU core counts but to pull down the power limit for high core-counts, thus giving a boost to lightly threaded jobs while maintaining high core count efficiency. This is something I plan to investigate, although getting comparable results to this set of plots is going to be hard due to the prevalence of the new AVX2 enabled work units.

Maybe I’ll just have to do it all over again with the new work units? Sigh…

AMD Ryzen 9 3950X Folding@Home Review: Part 2: Averaging, Efficiency, and Variation

Welcome back everyone! In my last post, I used my rebuilt benchmark machine to revisit CPU folding on my AMD Ryzen 9 3950x 16-core processor. This article is a follow-on. As promised, this includes the companion power consumption and efficiency plots for thread settings of 1-32 cores. As a quick reminder, I did this test with multi-threading (SMT) on, but with Core Performance Boost disabled, so all cores are running at the base 3.5 GHz setting.

Performance

The Folding@Home distributed computing project has come a long way from its humble disease-fighting beginnings back in 2000. The purpose of this testing is to see just how well the V7 CPU client scales on a modern, high core-count processor. With all the new Folding@Home donors coming onboard to fight COVID, having some insight into how to set up the configuration for the most performance is hopefully helpful.

For this test, I simply set the # of threads the client can use to a value and ran five sequential work units. I averaged the performance (Points Per Day), but I also plot the individual work unit performance values to give you a sense of the variation. Since the Ryzen 9 3950x supports 32 threads, I essentially ran 160 tests. Since I wanted the Folding@Home Consortium to get useful data in their fight against COVID-19, I let each work unit run to completion, even though I only need them to run to about 10-20% complete to get an accurate PPD estimate from the client.

So, without further blabbing on my part, here is the graph of Folding@Home performance vs. thread count in Windows 10 on the Ryzen 9 3950x

Ryzen_3950x_Performance_SMT_Off_CPB_On

Here, the solid blue line is the averaged performance, and the gray circles are the individual tests. The dashed blue lines represent a statistical 95% confidence interval, which is computed based on the variation. The expected Points Per Day (PPD) of a work unit run on the 3950x is expected to fall within this band 95% of the time.

My first observation is, holy crap! This is a fast processor. Some work units at high thread counts get really close to 500K PPD, which for me has only been achievable by GPU folding up to this point.

My second observation is that there is a lot of variation between different work units. This makes sense, because some work units have much larger molecules to solve than others. In my testing, I found the average variation of all 160 tests to be 12.78%, with individual variance up to 25%.

My third observation is that there seems to be two different regions on this plot. For the first half, the thread count setting is less than the number of physical cores on the chip, and the results are fairly linear. For the second half, the thread count setting is higher than the number of physical cores on the chip (thus forcing the CPU to virtualize those cores using SMT). Performance seems to fall off when the CPU cores become fully saturated (threads = 16), and it takes a while to climb out of the hole (threads = 24 starts showing some more gains).

As a side note, the client does not actually run all of these thread count settings, since some prime numbers, especially large primes (7, 11) and multiples thereof cause numerical issues. For example, when you try to run a 7-thread solve, the client automatically backs the thread count down to 6. You can see warnings in the log file about this when it happens.

Prime Number Thread Adjust

I noted all the relevant thread counts where this happens on the x-axis of the plot. Theoretically, these should be equivalent settings. The fact that the average performance varies a bit between them is just due to work unit variation (I’d have to run hundreds of averages to cancel all the variation out).

Finally, I noticed that the highest PPD actually occurred with a thread count of 30 (PPD = 407200) vs a thread count of 32 (PPD = 401485). This is a small but interesting difference, and is within the range of statistical variation. Thus I would say that setting the thread count to 30 vs 32 provides the same performance, while leaving two CPU threads free for other tasks (such as GPU folding…more on that later!).

Power Consumption

Power consumption numbers for each thread setting were taken at the wall, using my P3 Kill A Watt meter. Since the power numbers tend to walk around a bit as the computer works, it’s hard to get an instantaneous reading. Thus these are “eyeball averaged”. There was enough change at each CPU thread setting to clearly see a difference (not counting those thread settings that are actually equivalent to an adjacent setting).

Ryzen_3950x_Power_SMT_Off_CPB_On

The total measured power consumption rose fairly linearly from just under 80 watts to just under 160 watts. There’s not too much surprising here. As you throw more threads at the CPU, it clocks up idle cores and does more work (which causes more transistors to switch, which thus takes more power). This seems pretty believable to me. At the high end, the system is drawing just under 160 watts of power. The AMD Ryzen 9 3950x is rated at a 105 watt TDP, and with CPB turned off it should be pretty close to this number. My rough back of the hand calculation for this rig was as follows:

  1. CPU Loaded Power = 105 Watts
  2. GPU Idle Power (Nvidia GTX 1650) = 10 Watts
  3. Motherboard Power = 15 Watts
  4. Ram Power = 2 watts * 4 sticks = 8 watts
  5. NVME Power = 2 watts * 2 drives = 4 watts
  6. SSD Power = 2 watts

Total Estimated Watts @ F@H CPU Load = 144 Watts

Factor in a boat load of case fans, some silly LED lights, and a bit of PSU efficiency hit (about 90% efficient for my Seasonic unit) and it’ll be close to the 160 watts as measured.

Efficiency

This being a blog about saving the planet while still doing science with computers, I am very interested in energy efficiency. For Folding@Home, this means at doing the most work (PPD) for the least amount of power (watts). So, this plot is just PPD/Watts. Easy!

Similar to the PPD plot, this efficiency plot averages five data points for each thread setting. I chose to leave off the individual points and the confidence interval, because that looks about the same on this plot as it does on the PPD plot, and leaving all the clutter off makes this easier to read.

Ryzen_3950x_Efficiency_SMT_Off_CPB_On

As with the PPD plot, there seem to be two regions on the efficiency curve. The first region (threads less than 16) shows a pretty good linear ramp-up in efficiency as more threads are added. The second region (threads 16 or greater) is what I’m calling the “core saturation” region. Here, there are more threads than physical cores, and efficiency stays relatively flat. It actually drops off at 16 cores (similar to the PPD plot), and doesn’t start improving again until 24 or more threads are allocated to the solver.

This plot, at first glance, suggests that the maximum efficiency is realized at # of threads = 30. However, it should be noted that work unit variation still has a lot of influence, even with reporting results of a 5-sample average. You can see this effect by looking at the efficiency drop at threads = 31. Theoretically, the efficiency should be the same at threads = 31 and threads = 30, because the solver runs a 30-thread solution even when set to 31 to prevent domain decomposition.

Thus, similar to the PPD plot, I’d say the max efficiency is effectively achieved at thread counts of 30 and 32. My personal opinion is that you might as well run with # of threads = 30 (leaving two threads free for other tasks). This setting results in the maximum PPD as well.

Weird Results at Threads = 16-23

Some of you might be wondering why the performance and efficiency drops off when the thread count is set to the actual number of cores (16) or higher. I was too, so I re-ran some tests and looked at what was happening with AMD’s built-in Ryzen Master tool. As you can see in the screen shot below, even though the # of threads was set to 18 in Folding@Home (a number greater than the 16 physical cores), not all 16 cores were fully engaged on the processor. In fact, only 14 were clocked up, and two were showing relatively lazy clock rates.

Two Cores are Lazy!

Folding@Home 18-Thread CPU Solve on 16-Core Processor

I suspect what is happening is that some of the threads were loaded onto “virtual” CPU cores (i.e. SMT / hyper threading). This might be something Windows 10 does to preserve a few free CPU cores for other tasks. In fact, I didn’t see all of the cores turbo up to full speed until I set Folding@Home’s thread count to 24. This incidentally is when performance starts coming back in on the plots above.

This weird SMT / Hyper-threading behavior is likely what is responsible for the large drop-off / flat part of the performance and efficiency curves that exists from thread count = 16 to 23. As you can see in the picture below, once you fully load all the available threads, the CPU frequencies on each core all hit the maximum value, as expected.

Ryzen_Master_32_Thread_Solve

Folding@Home 32-Thread CPU Solve on 16-Core Processor

Results Comparison

The following plots compare overall performance, power consumption, and efficiency of my new AMD Ryzen 9 3950x Folding@Home rig to other hardware configurations I have tested so far.

Performance

As you can see from the plot below, the Ryzen 9 3950x running a 32-thread Folding@Home solve can compete with relatively modern graphics cards in terms of raw performance. High-end GPUs will still offer more performance, but for a processor, getting over 400K PPD is very impressive. This is significantly more PPD than the previous processors I have tested (AMD Bulldozer-based FX-8320e, AMD Phenom II X6 1100t, Intel Core2Quad Q6600, etc). Admittedly I have not tested very many CPUs, since this is much more involved than just swapping out graphics cards to test.

AMD Ryzen 9 3950x Performance

Power Consumption

From a total system power consumption standpoint, my new benchmark machine with the AMD Ryzen 9 3950x has a surprisingly low total power draw when running Folding. Another interesting point is that since the 3950x lacks onboard graphics, I had to have a graphics card installed to get display. In my case, I had the Nvidia GTX 1650 installed, since this is a relatively low power consumption card that should provide minimal overhead. As you can see below, folding on the 3950x CPU (with the 1650 GPU idle) uses nearly the same amount of power as folding on the 1650 GPU (with the 3950x idle).

AMD Ryzen 9 3950x Power Consumption

Efficiency

Efficiency is the point of this blog, and in this respect the 3950x comes in towards the upper middle of the pack of hardware configurations I have tested. It’s definitely the most efficient processor I have tested so far, but graphics cards such as the 1660 Super and 1080 Ti are more efficient. Despite drawing more total power from the wall, these high-end GPUs do a lot more science.

Still, a PPD/Watt of over 2500 is not bad, and in this case the 3950x is more efficient than folding on the modest GPU installed in the same box (the Nvidia GTX 1650). Compared to the much older AMD FX-8320e, the Ryxen 9 3950x is 14x more efficient! What a difference 7 years can make!

AMD Ryzen 9 3950x Efficiency

Conclusion

The 16-core, 32-thread AMD Ryzen 9 3950x is one fast processor, and can do a lot of science for the Folding@Home distributed computing project. Although mid to high-end graphics cards such as the 1080 Ti ($450 on the used market) can outperform the $700 3950x in terms of performance and efficiency, it is still important to have a smattering of high-end CPU folding rigs on the Folding@Home network, because some molecules can only be solved on CPUs.

There is a general trend of increasing efficiency and performance as the # of CPU threads allocated to Folding@Home increases. For the Ryzen 9 3950x, using a setting of 30 or 32 threads is recommended for maximum performance and efficiency. If you plan on using your computer for other tasks, or for simultaneously folding on the GPU, 30 threads is the ideal CPU slot setting.

Please Support My Blog!

If you are interested in measuring the power consumption of your own computer (or any device), please consider purchasing a P3 Kill A Watt Power Meter from Amazon. You’ll be surprised what a $35 investment in a watt meter can tell you about your home’s power usage, and if you make a few changes based on what you learn you will save money every year! Using this link won’t cost you anything extra, but will provide me with a small percentage of the sale to support the site hosting fees of GreenFolding@Home.

If you enjoyed this article, perhaps you are in the market for an AMD Ryzen 9 3950x or similar Ryzen processor. If so, please consider using one of the links below to buy one from Amazon. Thanks for reading!

AMD Ryzen 9 3950x Direct Link

AMD Ryzen (Amazon Search)

Future Work

In the next article, I’ll disable multithreading (SMT) to see the effect of virtualized CPU cores on Folding@Home performance.

Later, I plan to enable core performance boost on the 3950x to see what effect the automatic clock frequency and voltage overclocking has on Folding@Home performance and efficiency.





New Folding@Home Benchmark Machine: It’s RYZEN TIME!

Folding@Home, the distributed computing project that fights diseases such as COVID-19 and cancer, has hit an all-time high in popularity. I’m stunned to find that my blog is now getting more views every day than it did every month last year. With that said, this is a perfect opportunity to reach out and see if all the new donors are interested in tuning their computers for efficiency, to save a little on power, lighten the burden on your wallet, and hopefully produce nearly the same amount of science. If this sounds interesting to you, let me know in the comments below!

In my last post, I noted that the latest generation of graphics cards are starting to push the limits of what my primary GPU Folding@Home benchmark rig can do. That computer is based on an 11-year-old chipset (AMD 880), and only supports PCI-Express 2.0. In order for me to keep testing modern fast graphics cards in Windows 10, I wanted to make sure that PCI-Express slot bandwidth wasn’t going to artificially bottleneck me.

So, without further ado, let me present the new, re-built Folding@Home rig, SAGITTA:

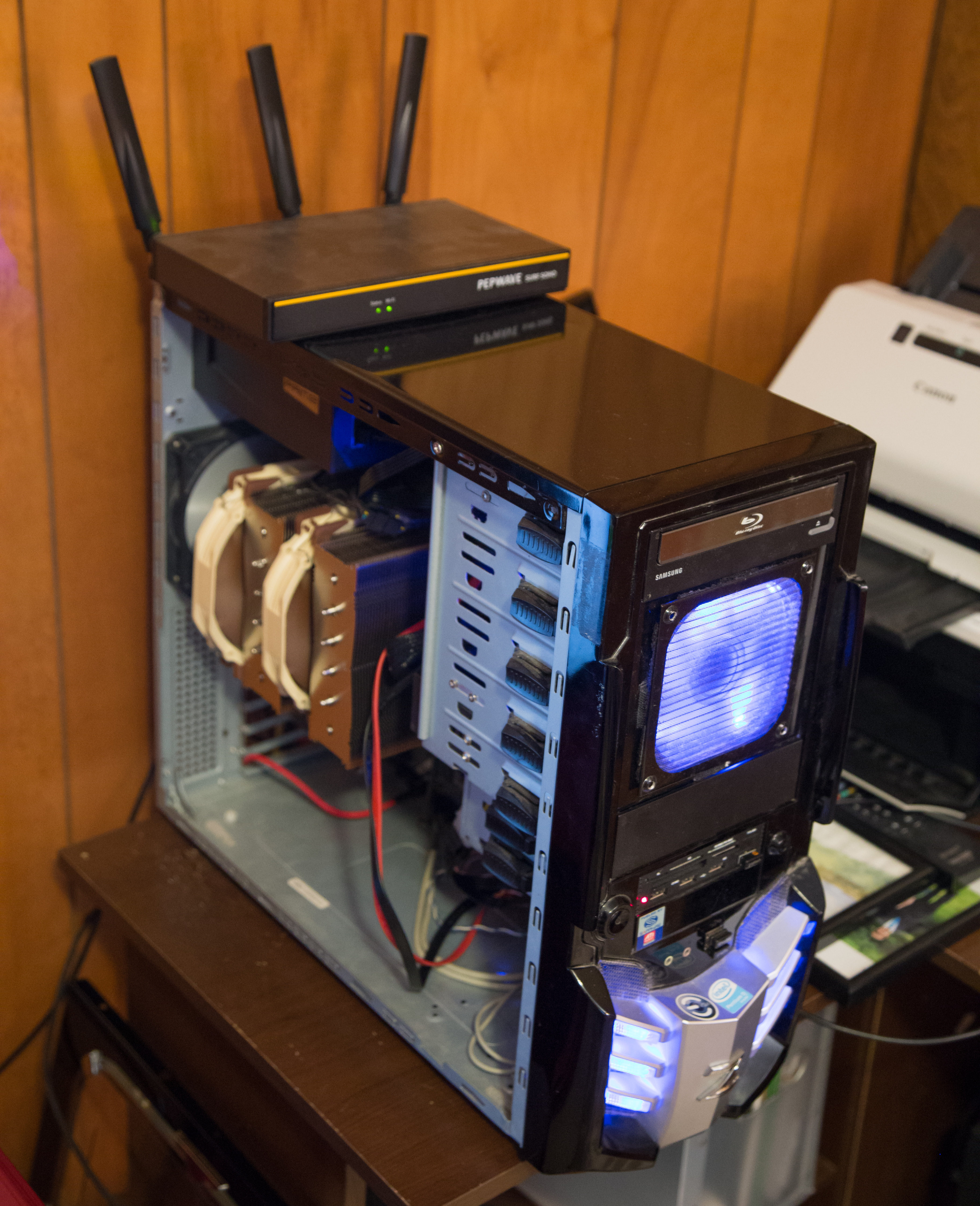

Sagitta Desktop

I’ve (re)created a monster!

This build leverages the Raidmax Sagitta case that I’ve had since 2006. This machine has hosted multiple builds (Pentium D 805, Core 2 Duo e8600, Core 2 Quad Q6600, Phenom II X6 1100T, and the most recent FX-8320e Bulldozer). There have been too many graphics cards to count, but the latest one (Nvidia GTX 1650 by Zotac) was carried over for some continuity testing. The case fans and power supply (initially) were also the same since the previous FX build (they aren’t the same ones from back in 2006…those got loud and died long ago). I also kept my Blu-Ray drive and 3.5 inch card reader. That’s where the similarities end. Here is a specs comparison:

Sagitta Rebuild Benchmark Machine Specs

  • Note I ended up updating the power supply to the one shown in the table. More on that below…

System Power Consumption

Initially, the power consumption at idle of the new Ryzen 9 build, measured with my P3 Kill A Watt Meter, was 86 watts. The power consumption while running GPU Folding was 170 watts (and the all-core CPU folding was over 250 watts, but that’s another article entirely).

Using the same Nvidia GeForce GTX 1650 graphics card, these idle and GPU folding power numbers were unfortunately higher than the old benchmark machine, which came in at 70 watts idle and 145 watts load. This is likely due to the overkill hardware that I put into the new rig (X570 motherboards alone are known to draw twice the power of a more normal board). The system’s power consumption difference of 25 watts while folding was especially problematic for my efficiency testing, since new plots compared to graphics cards tested on the old benchmark machine would not be comparable.

To solve this, I could either:

A: Use a 25 watt offset to scale the new GPU F@H efficiency plots

B: Do nothing and just have less accurate efficiency comparisons to previous tests

C: Reduce the power consumption of the new build so that it matches the old one

This being a blog about energy efficiency, I decided to go with Option C, since that’s the one that actually helps the environment. Lets see if we can trim the fat off of this beast of a computer!

Efficiency Boost #1: Power Supply Upgrade

The first thing I tried was to upgrade the power supply. As noted here, the power supply’s efficiency rating is a great place to start when building an energy efficient machine. My old Seasonic X-650 is a very good power supply, and caries an 80+ Gold rating. Still, things have come a long way, and switching to an 80+ Titanium PSU can gain a few efficiency percentage points, especially at low loads.

80+ Table

80+ Efficiency Table

With that 3-5% efficiency boost in mind, I picked up a new Seasonic 750 Watt Prime 80+ Titanium modular power supply. At $200, this PSU isn’t cheap, but it provides a noticeable efficiency improvement at both idle and load. Other nice features were the additional 100 watts of capacity, and the fact that it supported my new motherboard’s dual pin (8 + 4) CPU aux power connection. That extra 4-pin isn’t required to make the X570 board work, but it does allow for more overclocking headroom.

Disclaimer: Before we get into it, I should note that these power readings are “eyeball” readings, taken by glancing at the watt meter and trying to judge the average usage. The actual number jumps around a bit (even at idle) as the computer executes various background tasks. I’d say the measurement precision on any eyeball watt meter readings is +/- 5 watts, so take the below with a grain of salt. These are very small efficiency improvements that are difficult to measure, and your mileage may vary.

After upgrading the power supply, idle power dropped an impressive 10 watts, from 86 watts to 76. This is an awesome 11% efficiency improvement. This might be due to the new 80+ Titanium power supply having an efficiency target at very low loads (90% efficiency at 10% load), whereas the old 80+ Gold spec did not have a low load efficiency requirement. Thus, even though I used a large 750 watt power supply, the machine can still remain relatively efficient at idle.

Under moderate load (GPU folding), the new 80+ titanium PSU provided a 4% efficiency improvement, dropping the power consumption from 170 watts to 163. This is more in line with expectations.

Efficiency Boost #2: Processor Underclock / Undervolt

Thanks to video gaming mentality, enthusiast-grade desktop processors and motherboards are tuned out of the box for performance. We’re talking about blistering fast, competition-crushing benchmark scores. For most computing tasks (such as running Folding@Home on a graphics card), this aggressive CPU behavior is wasting electricity while offering no discernible performance benefit. Despite what my kid’s shirt says, we need to reel these power hungry CPUs in for maximum GPU folding efficiency.

Never Slow Down

Kai Says: Never Slow Down

One way to improve processor efficiency is to reduce the clock rate and associated voltage. I’d previously investigated this here. It takes exponentially more voltage to support high frequencies, so just by dropping the clock rate by 100 MHz or so, you can lower the voltage a bunch and save on power.

With the advent of processors that up-clock and up-volt themselves (as well as going in the other direction), manual tuning can be a bit more difficult. It’s far easier to first try the automatic settings, to see if some efficiency can be gained.

But wait, this is a GPU folding benchmark rig? Why does the CPU’s frequency and power settings matter?

For GPU folding with an Nvidia graphics card, one CPU core is fully loaded per GPU slot in order to “feed” the card. This is because Nvidia’s implementation of open CL support using a polling (checking) method. In order to keep the graphics card chugging along, the CPU constantly checks on the GPU to see if it needs any data. This polling loop is not efficient and burns unnecessary power. You can read more about it here: https://foldingforum.org/viewtopic.php?f=80&t=34023. In contrast, AMD’s method (interrupts) is a much more graceful implementation that doesn’t lock up a CPU core.

The constant polling loop drives modern gaming-oriented processors to clock up their cores unnecessarily. For the most part, the GPU does not need work at every waking moment. To save power, we can turn down the frequency, so that the CPU is not constantly knocking on the GPU’s metaphorical door.

To do this, I disabled AMD’s Core Performance Boost (CPB) in the AMD Overclocking section of the BIOS (same thing as Intel’s Turbo Boost). This caps the processor speed at the base maximum clock rate (3.5 GHz for the Ryzen 9 3950x), and also eliminates any high voltage values required to support the boost clocks.

Success! GPU folding total system power consumption is now much lower. With less superfluous power draw from the CPU, the wattage is much more comparable to the old Bulldozer rig.

Ryzen 9 3950x Power Reduction Table

It is interesting that idle power consumption came down as well. That wasn’t expected. When the computer isn’t doing anything, the CPU cores should be down-clocked / slept out. Perhaps my machine was doing something in the background during the earlier tests, thus throwing the results off. More investigation is needed.

GPU Benchmark Consistency Check

I fired up GPU folding on the Nvidia GeForce GTX 1650, a card that I have performance data for from my previous benchmark desktop. After monitoring it for a week, the Folding@Home Points Per Day performance was so similar to the previous results that I ended up using the same value (310K PPD) as the official estimate for the 1650’s production. This shows that the old benchmark rig was not a bottleneck for a budget card like the GeForce GTX 1650.

Using the updated system power consumption of nominally 140 watts (vs 145 watts of the previous benchmark machine), the efficiency plots (PPD/Watt) come out very nearly the same. I typically consider power measurements of + / – 5 watts to be within the measurement accuracy of my eyeball on the watt meter anyway, due to normal variations as the system runs. The good news is that even with this variation, it doesn’t change the conclusion of the figure (in terms of graphics card efficiency ranking).

GTX 1650 Efficiency on Ryzen 9

* Benchmark performed on updated Ryzen 9 build

Conclusion

I have a new 16-core beast of a benchmark machine. This computer wasn’t built exclusively for efficiency, but after a few tweaks, I was able to improve energy efficiency at low CPU loads (such as Windows Idle + GPU Folding).

For most of the graphics cards I have tested so far, the massive upgrade in system hardware will not likely affect performance or efficiency results. Very fast cards, such as the 1080 Ti, might benefit from the new benchmark rig’s faster hardware, especially that PCI-Express 4.0 x16 graphics card slot. Most importantly, future tests of blistering fast graphics cards (2080 Ti, 3080 Ti, etc) will probably not be limited by the benchmark machine’s background hardware.

Oh, I can also now encode my backup copies of my blu-ray movies at 40 fps in H.265 in Handbrake (old speed was 6.5 fps on the FX-8320e). That’s a nice bonus too.

Efficiency Note (for GPU Folding@Home Users)

Disabling the automatic processor frequency and voltage scaling (Turbo Boost / Core Performance Boost) didn’t have any effect on the PPD being generated by the graphics card. This makes sense; even relatively slow 2.0 GHz CPU cores are still fast enough to feed most GPUs, and my modern Ryzen 9 at 3.5 GHz is no bottleneck for feeding the 1650. By disabling CPB, I shaved 23 watts off of the system’s power consumption for literally no performance impact while running GPU folding. This is a 16 percent boost in PPD/Watt efficiency, for free!

This also dropped CPU temps from 70 degrees C to 55, and resulted in a lower CPU cooler fan speed / quieter machine. This should promote longevity of the hardware, and reduce how much my computer fights my air conditioning in the summer, thus having a compounding positive effect on my monthly electric bill.

Future Articles

  • Re-Test the 1080 Ti to see if a fast graphics card makes better use of the faster PCI-Express bus on the AM4 build
  • Investigate CPU folding efficiency on the Ryzen 9 3950x



Shout out to the helpers…Kai and Sam
